Series P
Chemically resistant, single-stage thermoplastic peripheral impeller pump in close-coupled design, with magnetic drive, non-self-priming
The P series is designed according to the peripheral impeller principle. The special impeller and casing geometry enables high pressures. The motor power is transmitted contactlessly and without wear via a magnetic drive through the closed casing wall (containment shell) to the pump impeller.
- Peripheral wheel
- Magnetic drive
- PP
- 80 °C
- 5 m³/h
- 40 m
- Very precise control possible due to linear characteristic curve
- Hermetically sealed and completely leak-free, as no shaft seal is used
- Ideally suited for toxic, environmentally hazardous and aggressive fluids
- Very well suited for conveying low-boiling liquids
The maximum fluid temperature is 60 °C. This pump is also available in an ATEX-certified
version under the designation P-EX for use in ATEX Zone 2.
Performance Overview
Description- Characteristics

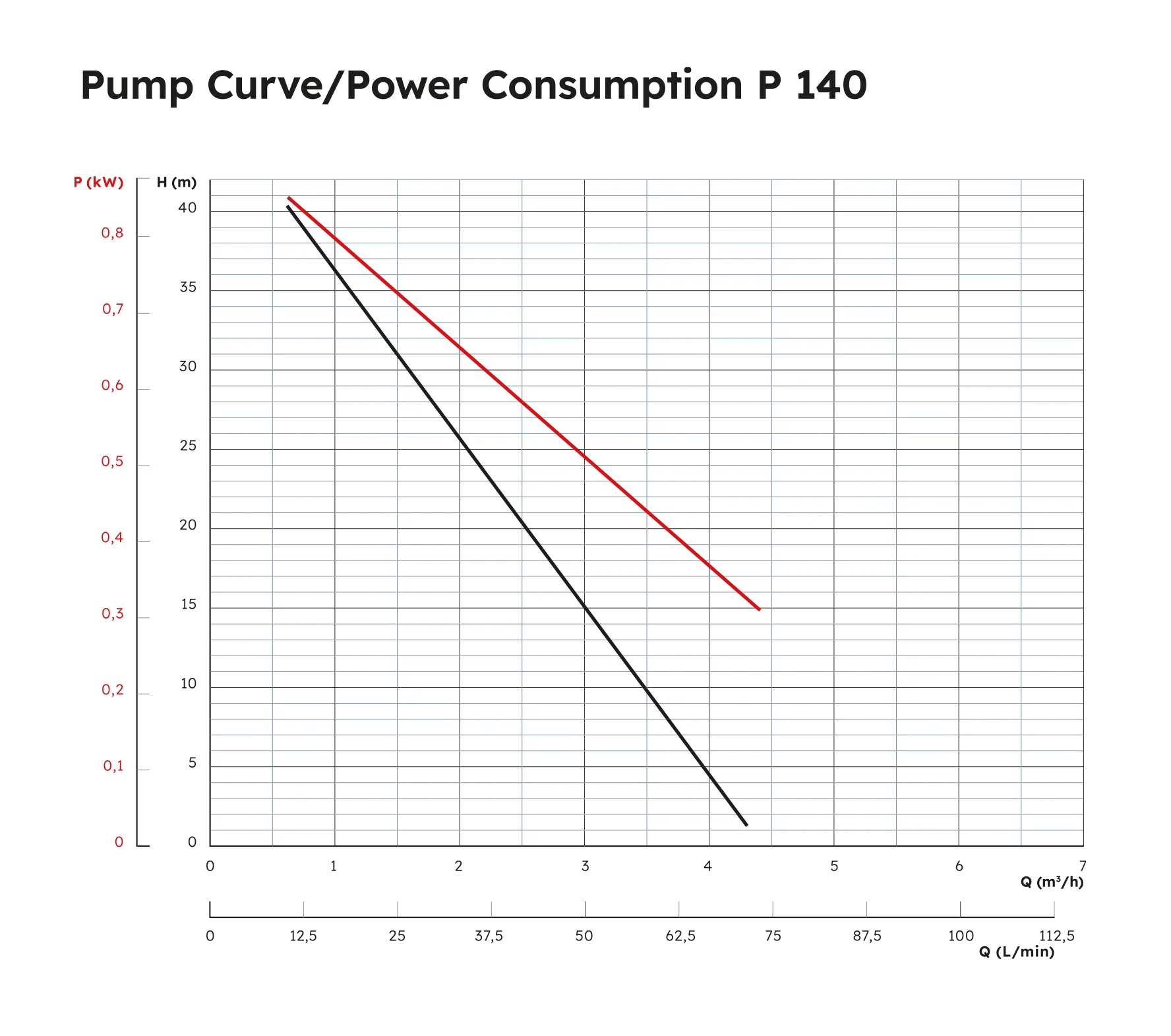

- Performance Curves

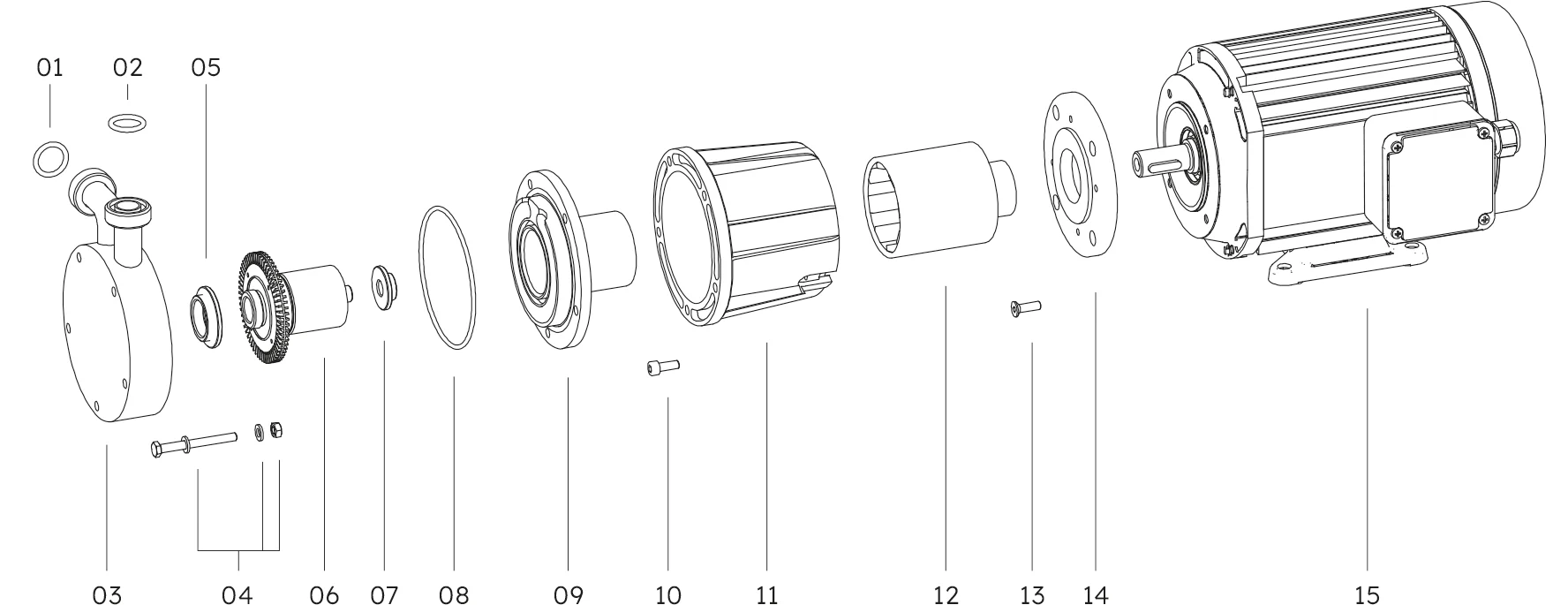

- Spare Parts
Chemically resistant, single-stage thermoplastic peripheral impeller pump in close-coupled design, with magnetic drive, non-self-priming
Features
- Hermetically sealed and completely leak-free, as the design requires no shaft seal
- Contactless magnetic drive with high-performance neodymium magnets
- Virtually maintenance-free in normal operation due to generously dimensioned plain bearings
- All wetted parts made of high-quality, corrosion-resistant plastics (PVDF or PP-GF)
- Equipped as standard with threaded connections according to ISO 228-1
- Universally applicable, compact and quiet
- Approved for use in potentially explosive atmospheres (ATEX Zone 2)
- Corrosion-resistant coating in RAL 1017, saffron yellow
- All screws made of V4A stainless steel (1.4571)
- All wetted materials with FDA approval (PVDF series)
Applications
Pumping of acids, alkalis or other corrosive, harmful or toxic liquids in applications where leakage of even the smallest quantities is undesirable and a hermetically sealed pump is required.
Pumping of high-purity or sensitive liquids where contamination of the process fluid with foreign substances must be avoided.
For example in the following applications:
- Electroplating and surface coating
- Wet chemical processes in semiconductor technology, solar cell production and printed circuit board manufacturing
- Wastewater and fresh water treatment
- Laboratory and medical technology
- Environmental technology, exhaust gas cleaning, gas scrubbers
- Battery production, energy storage
- High-purity applications, deionized water, ultrapure water

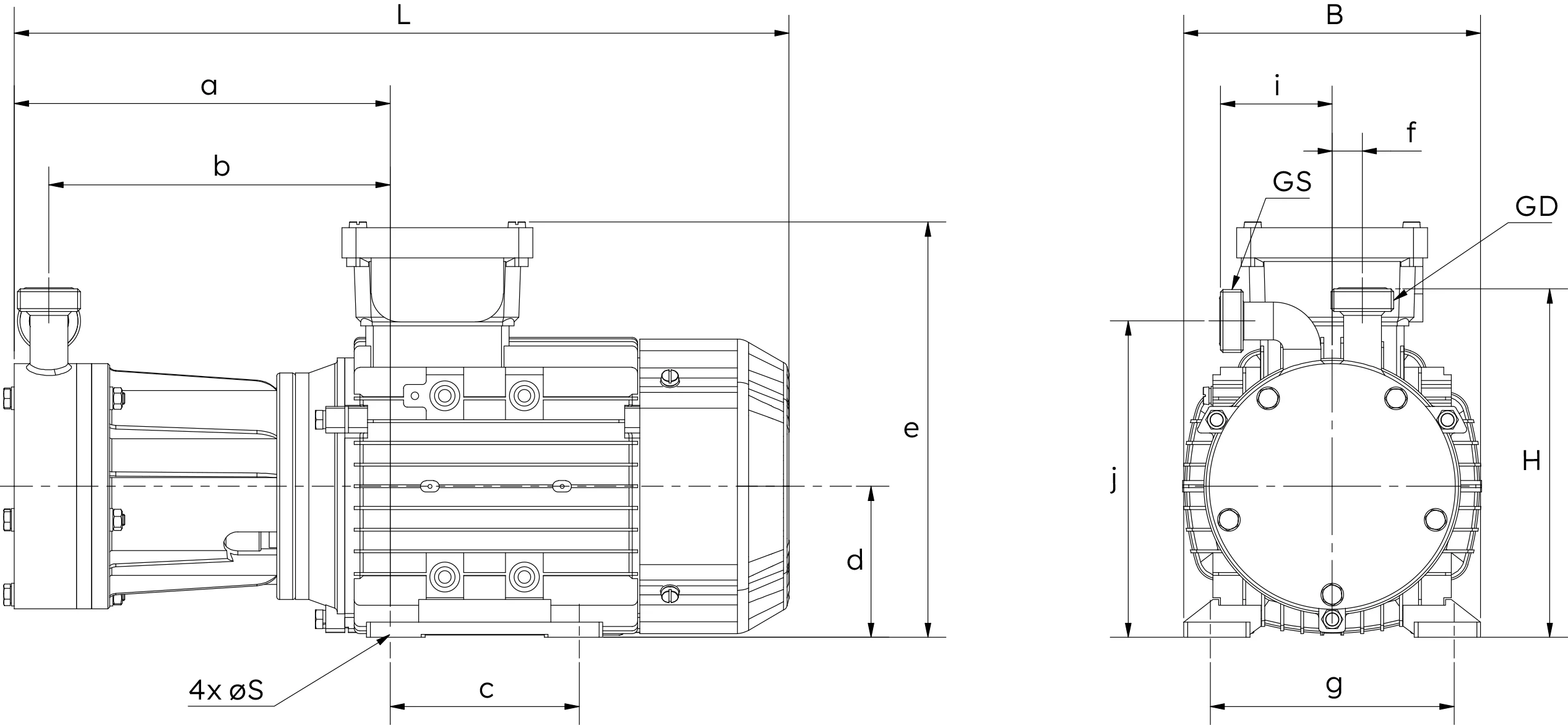

Dimensions
The dimensions stated are reference values. Deviations may occur depending on the motor design or manufacturer.
A binding dimensional drawing will be provided with our quotation.
| GS | GD | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Thread | DN | Thread | DN | L (mm) |
B (mm) |
H (mm) |
S (mm) |
a (mm) |
b (mm) |
c (mm) |
d (mm) |
e (mm) |
f (mm) |
g (mm) |
Weight (kg) |
| 140 | G1" | 15 | G1" | 15 | 410 | 157 | 185 | 10 | 199 | 181 | 100 | 80 | 220 | 16 | 125 | 14 |
