Series T
Chemically resistant vertical immersion pump in sealless design, dry-run capable
In the T series, the motor power is transmitted vertically to the pump impeller via an extended shaft. The shaft runs without any additional intermediate bearing (“cantilever” principle), contact-free and wear-free inside the housing. As standard, the T series is sealless, but can be equipped with a labyrinth seal or shaft seal as a vapour barrier. Immersion depths up to 800 mm. Additional suction pipe extension up to 2 m (depending on the size).
Solids with a particle size of up to 3 mm and 10 vol. % can be conveyed with the fluid. The viscosity can be up to 150 mPa·s; the maximum fluid temperature is 95 °C, depending on the design.
- Immersion pump
- dry-run capable
- PP
- PVDF
- (stainless steel)
- 80 °C
- 95 °C
- 150 °C
- 18 m³/h
- 26 m
- Fully dry-run capable
- No abrasion particles enter the fluid, making it well suited for high-purity applications
- Maintenance-free operation, as there are no wear parts such as plain bearings or mechanical seals
- Available in stainless steel 1.4571 (on request)
Performance Overview
Description- Characteristics

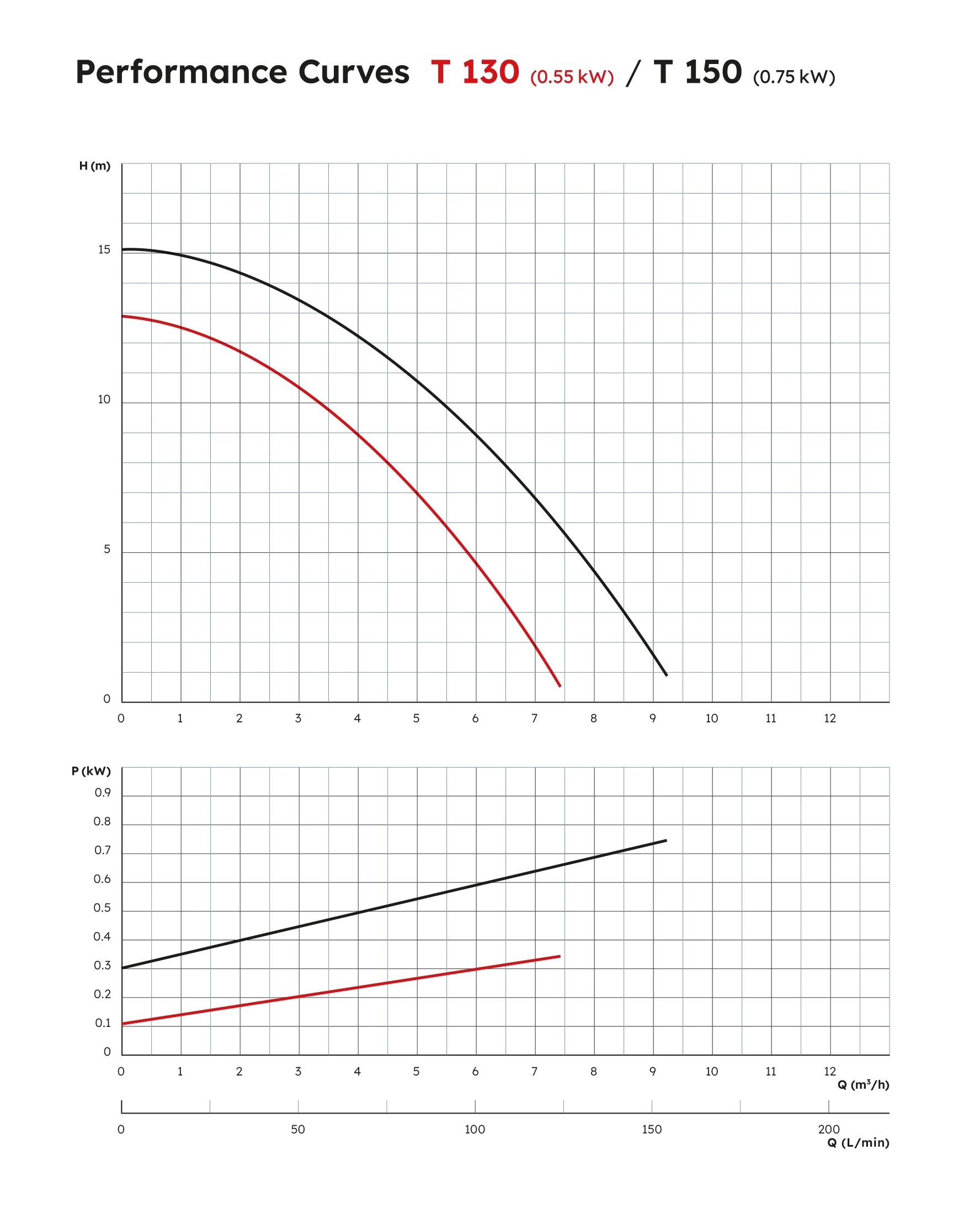

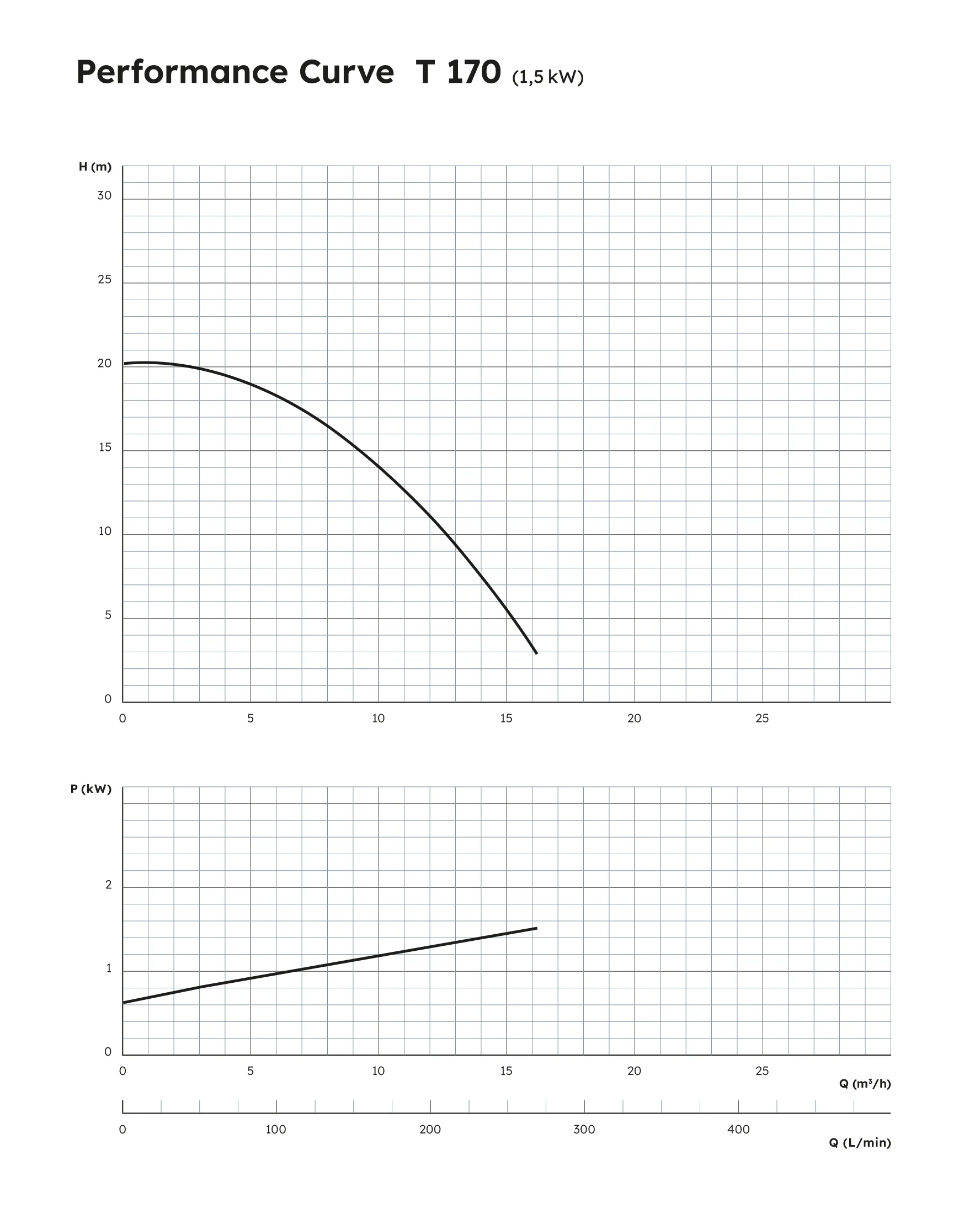

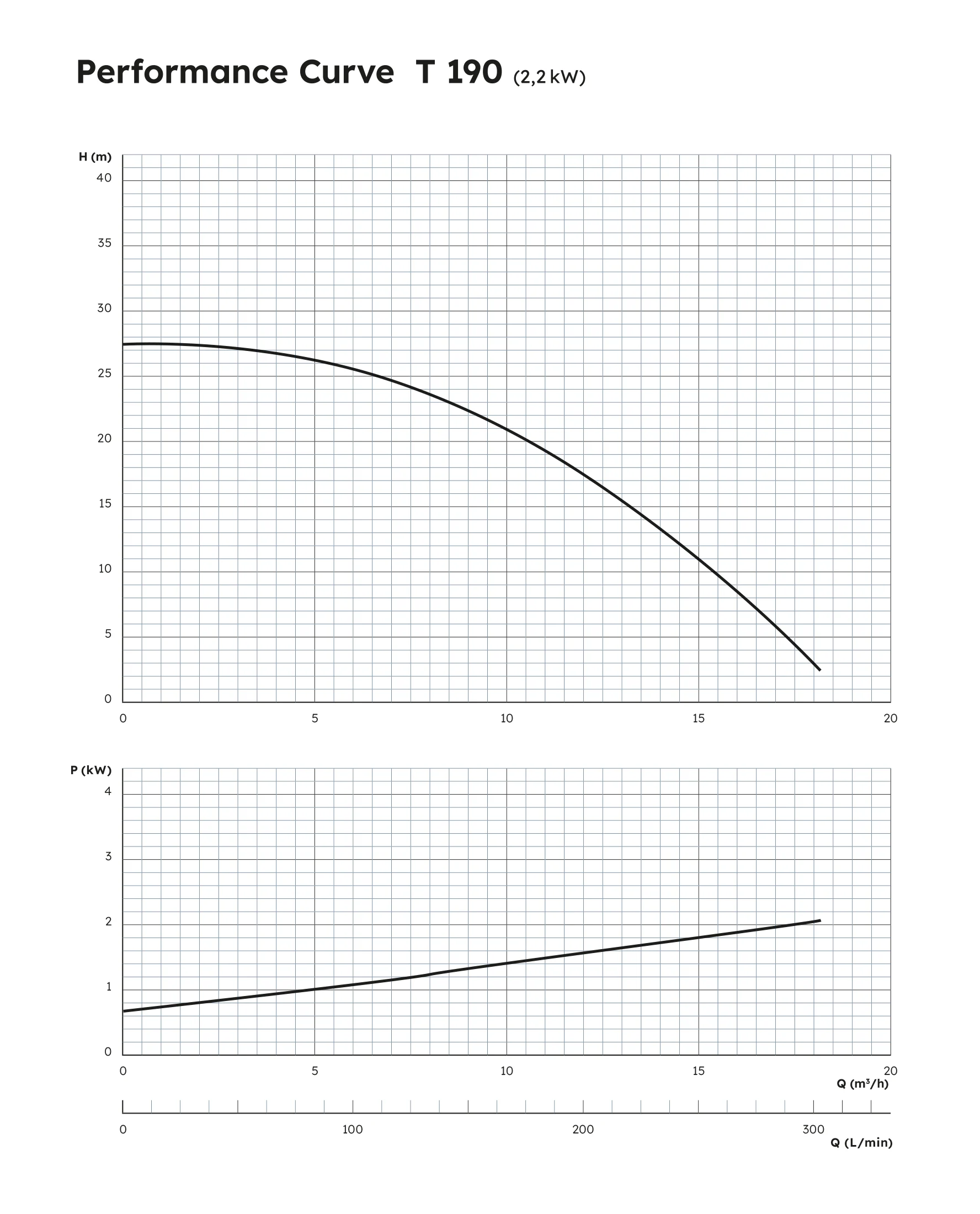

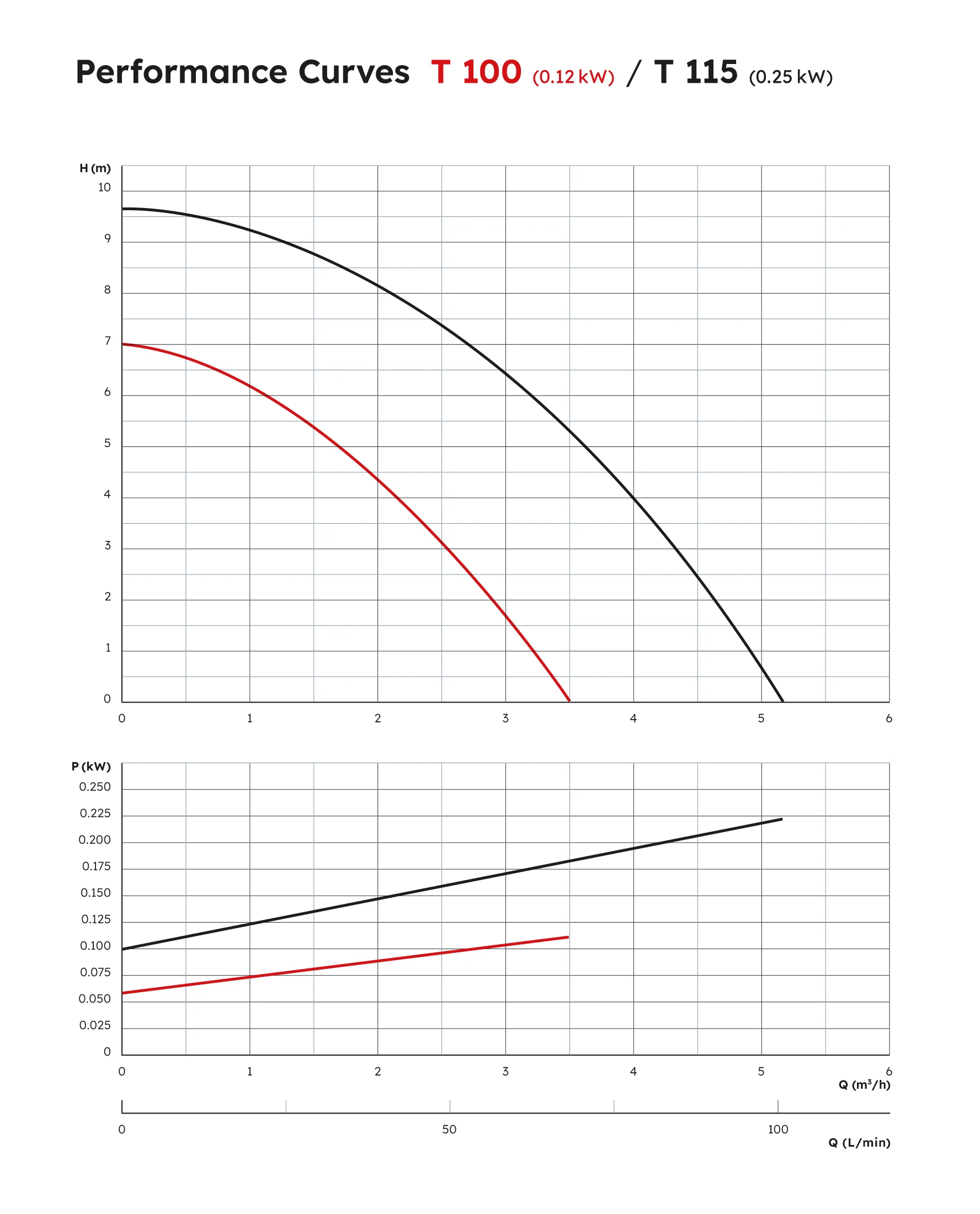

- Performance Curves

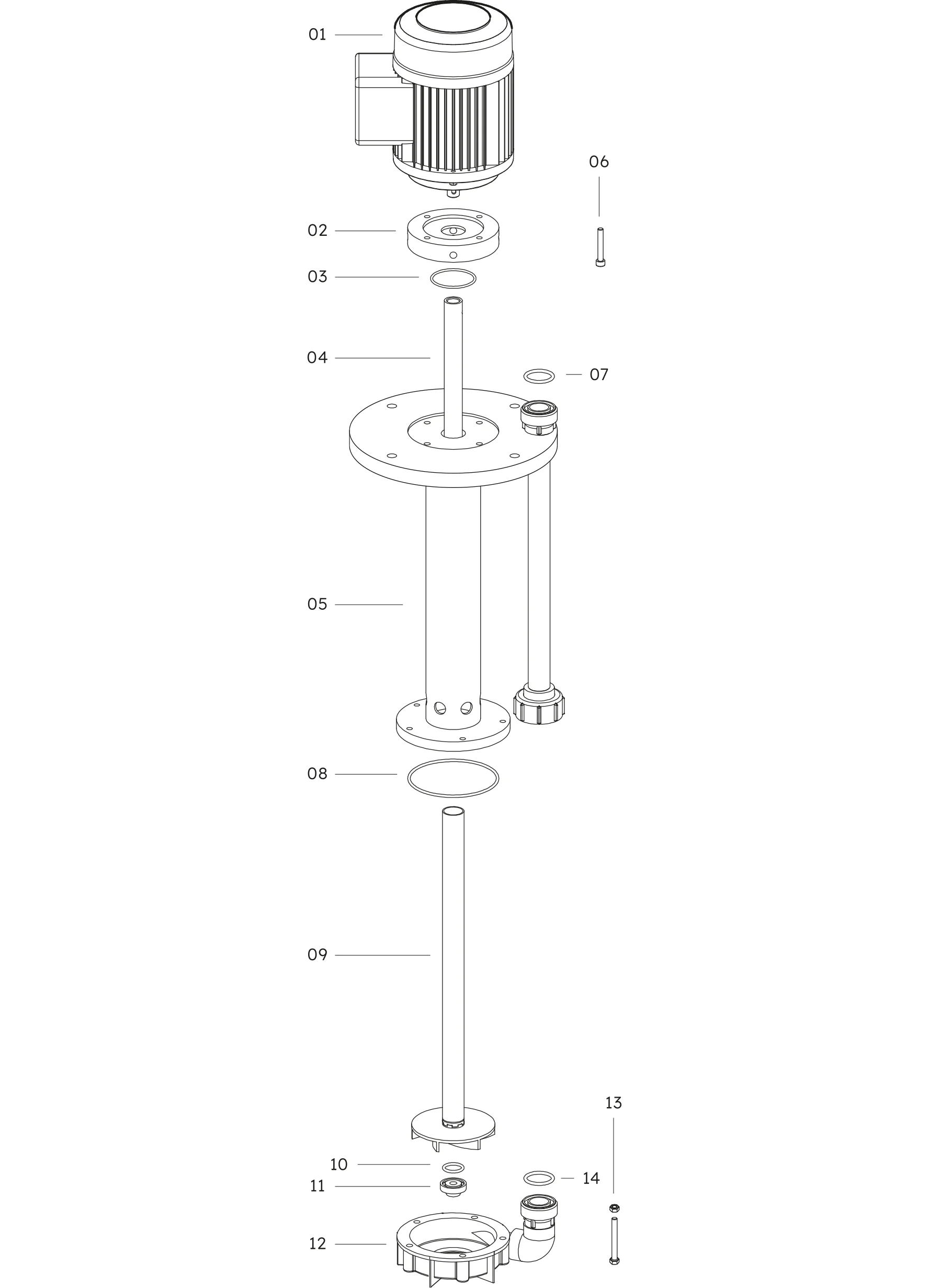

- Spare Parts
Chemically resistant vertical immersion pump in sealless design, dry-run capable
Features
- Fully dry-run capable, as the shaft and impeller rotate contact-free in the housing
- Maintenance-free operation, as there are no wear parts such as plain bearings or mechanical seals
- Optionally available with suction pipe extension, allowing the immersion depth to be individually adjusted
- Optionally available with suction strainer, preventing the ingress of foreign bodies and coarse dirt
- All wetted parts made of high-quality, corrosion-resistant plastics (PVDF or PP)
- Approved for use in potentially explosive atmospheres (ATEX Zone 2)
- Equipped as standard with threaded connections according to ISO 228-1; from size 130 also optionally available with flange connections
- Versatile, compact and quiet
- Corrosion-resistant motor coating
Applications
Installation in return basins, tank covers, pump sumps, etc. Transfer of acids, alkalis or other corrosive fluids. Transfer in unregulated or unmonitored system areas where temporary dry running cannot be excluded.
For example, in the following applications:
- Electroplating and surface coating
- Wet chemical processes in semiconductor technology, solar cell production and printed circuit board manufacturing
- Wastewater and fresh water treatment
- Laboratory and medical technology
- Environmental technology, exhaust gas cleaning, gas scrubbers
- Battery production, energy storage
- High-purity applications, demineralised water, ultrapure water

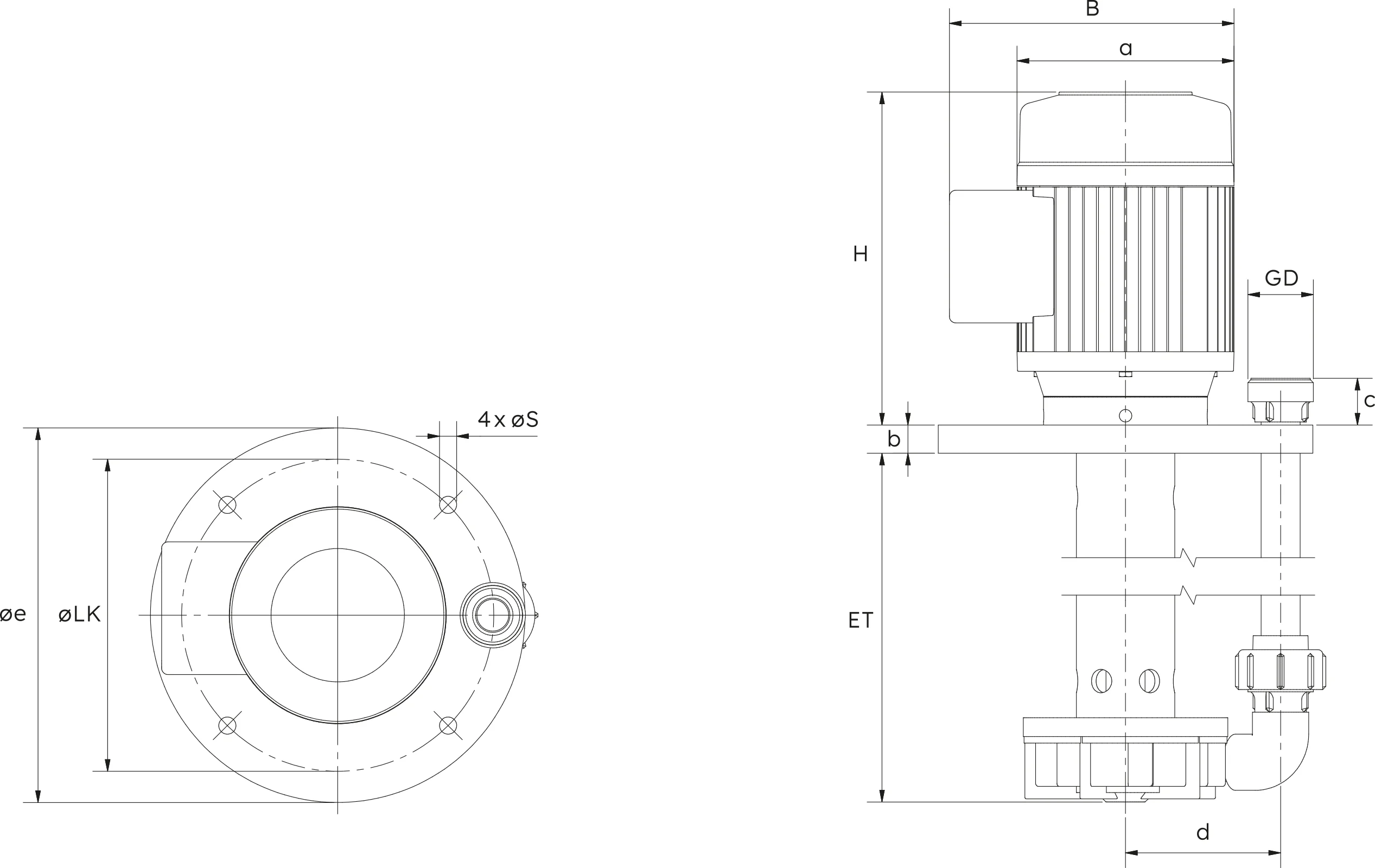

Dimensions
The dimensions provided are for reference only. Deviations may occur depending on the motor design or manufacturer.
A binding dimensional drawing will be provided with our quotation.
| Type | Thread | DN | ET | B (mm) |
H (mm) |
LK (mm) |
S (mm) |
a (mm) |
b (mm) |
c (mm) |
d (mm) |
e (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | G1" | 15 | 200 | 152 | 199 | 150 | 11 | 113 | 18 | 30 | 83 | 220 |
| 115 | G1¼" | 20 | 200 / 300 / 400 | 165 | 214 | 170 | 11 | 126 | 18 | 37 | 97 | 230 |
| 130 | G1¼" | 20 | 200 / 300 / 400 | 183 | 235 | 200 | 11 | 139 | 18 | 30 | 99 | 240 |
| 150 | G1¼" | 20 | 300 / 400 / 500 | 209 | 252 | 225 | 11 | 158 | 22 | 30 | 113 | 265 |
| 170 | G1½" | 25 | 400 / 600 / 800 | 230 | 305 | 280 | 13 | 175 | 22 | 55 | 130 | 320 |
| 190 | G1½" | 25 | 400 / 600 / 800 | 230 | 339 | 280 | 13 | 175 | 22 | 55 | 141 | 330 |
